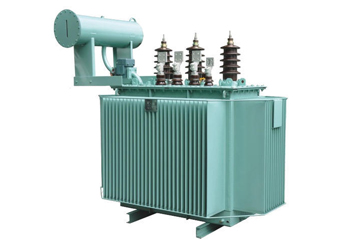

oil-type-transformer-500×500-1

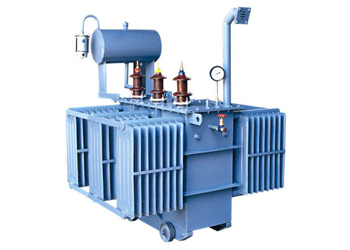

power-and-distribution-transformers-upto-1000-kva-500×500-1

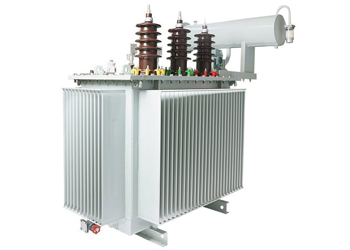

750kva-11-433kv-or-33-433kv-3-phase-power-and-distribution-transformer-500×500-1

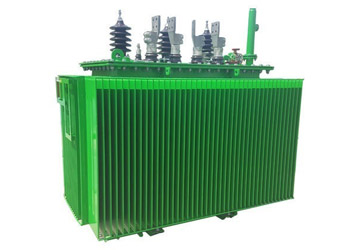

schneider-2000-kva-distribution-transformer-500×500-1

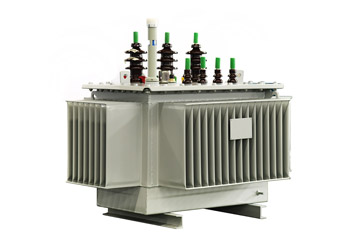

630kVA-Oil-Immersed-Distribution-Transformer-Installed-in-Above-1000-Meter-Sea-Level

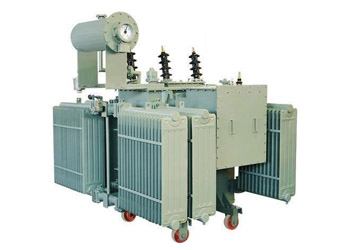

industrial-transformer-500×500-1
250-kva-electrical-distribution-transformer-500×500-1

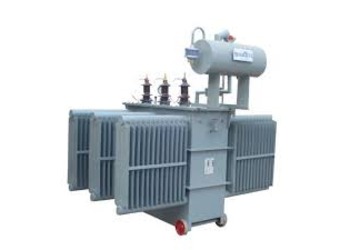

download (3) (2)

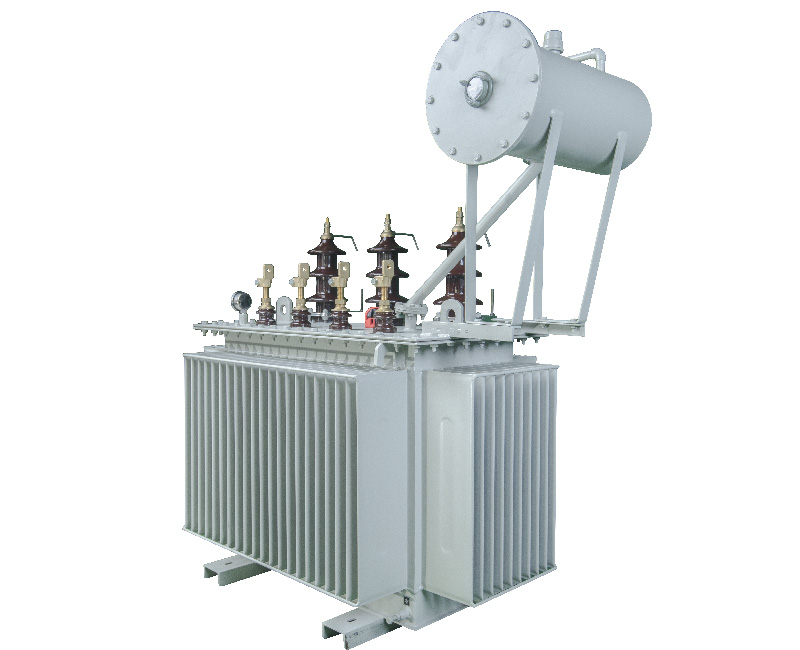

DISTRIBUTION TRANSFORMER

Transformers are one of the primary components for the transmission and distribution of electrical energy. The scope of transformer types starts with generator transformers and ends with distribution transformers. Transformers which are directly connected to the generator of the power stations are called generator transformers. Rahima’s standard range goes up to 10MVA and 150kVa. The connection between the different high voltage system levels is made via network transformers. Rahima is able to offer network transformers up to 10MVA, 150kV.

  • Designed to withstand short circuit forces acts radially and axially during faults.
  • High efficiency is ensured by implementing the technology of magnetic material and CU conductor.
  • Thermally upgraded insulation paper(Class A) results in Long
  • Lower PD value, lower sound level
  • High withstanding capability against TOV, lightning strikes, switching phenomenon, over flux conditions.
  • Leakproof, pressure, and vacuum tested as per standard.

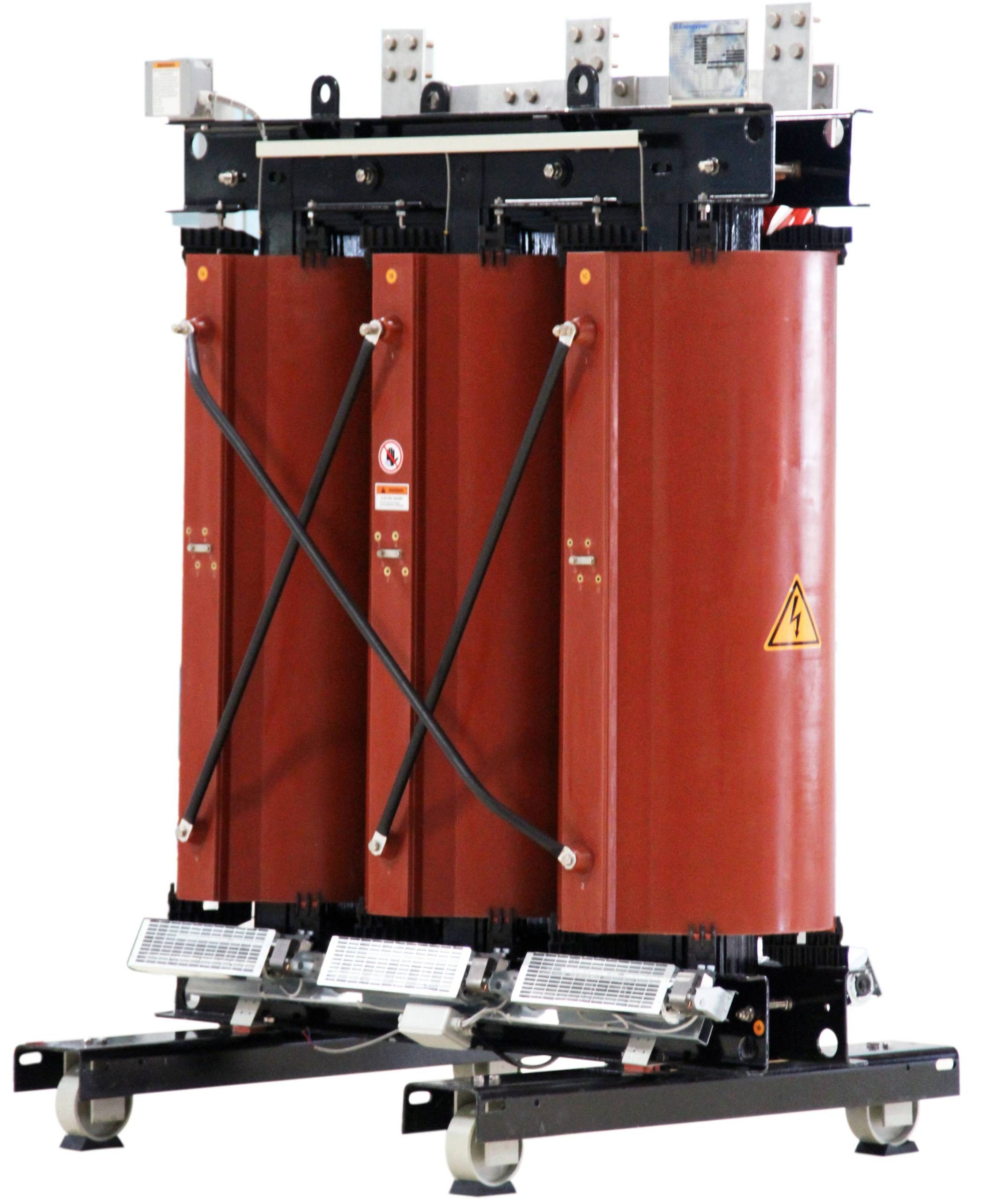

DISTRIBUTION TRANSFORMER-DRY TYPE

Rahima Engineering offers a full range of dry-type transformers up to 3 MVA, with 33kV on the high voltage side and 11kV on the low voltage side. These are built according to all major standards including IEC, IS and ANSI and when required as per the loss directives of ECBC-2020. To minimize environmental contamination and fire hazard, customers are specifying dry-type transformers more frequently. These transformers meet strict parameters with respect to electrical system demands and functioning in areas with extreme climatic conditions. Rahima refers to its dry type distribution transformer as "cast resin transformer." Moreover, Rahimas's cast resin transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001.

  • Self extinguishing material
  • Compact footprint and environment friendly
  • Easy installation
  • Maintenance free
  • Designed to withstand the highest mechanical short circuit stress that may occur during operation
  • High voltage coil windings are cast to prevent humidity
  • High resistance against overvoltage
  • Low decibel, high capacity and high performance
  • Low partial discharge
